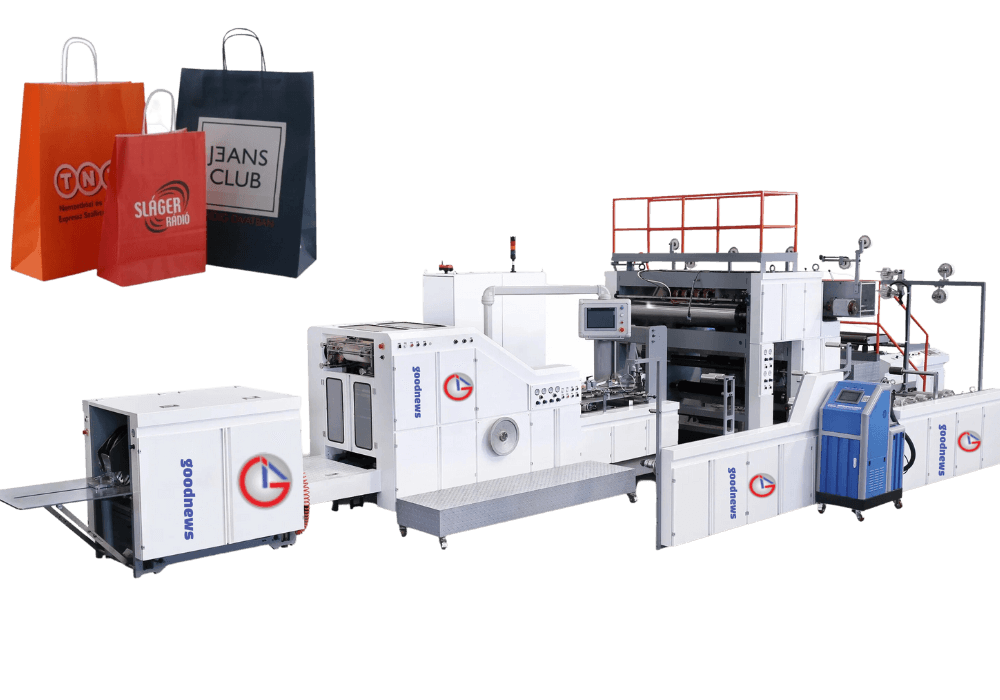

Fully Automatic Twisted Rope Handle Square Bottom Paper Bag Machine
Characteristics:
- High Productivity
- Precise Bag Making
- Twisted Rope Handle Application
- Versatile Bag Specifications
- User-Friendly Operation
- Quality and Durability
- Energy Efficiency
- Roll Feeding Section
- Bag Forming Unit
- Handle Making Unit
- Handle Sticking Unit
- Delivery Conveyor Unit
- Machine Electrical Panel
The complete machine is divided into 6 parts as follows:
Technical Specification
| S.no | Model | GNSBM-360 | GNSBM-460 | GNSBM - 460L |
|---|---|---|---|---|
| 1. | Paper bag part | |||
| Cutting Length C | 270-530mm 270-480mm(Handel) |
270-530mm 270-480mm(Handel) |
270-530mm 270-480mm(Handel) |
|
| Bag Width W | 120-330mm 200-330mm (Handle) |
220-450mm 240-450mm (Handle) |
220-450mm 240-450mm (Handle) |
|
| Bottom Width H | 80-200mm 80-180mm (Handle) |
80-200mm 80-180mm (Handle) |
80-220mm 100-220mm (Handle) |
|
| Paper Thickness | 60-140 gsm 80-140 gsm (Handle) |
80-140 gsm 80-140 gsm (Handle) |
80-140 gsm 80-140 gsm (Handle) |
|
| Paper Roll Maximum Width | 1050mm | 1290mm | 1290mm | |
| Roll Paper Diameter | 1200mm | 1200mm | 1200mm | |
| Paper Core | 78mm | 78mm | 78mm | |
| 2. | Rope Handle part | |||
| Patch Lengtn a | 152mm | 180mm | 180mm | |
| Patch Widtn b | 45-50mm | 45-50mm | 45-50mm | |
| Handle Rope Height d | 100mm | 100mm | 100mm | |
| Handle Distance c | 75mm | 95mm | 95mm | |
| Rope Diameter | 3-5mm | 3-5mm | 3-5mm | |
| Patch Paper Roll Widtn | 90-100mm | 90-100mm | 90-100mm | |
| Patch Paper Roll Diameter | 1000mm | 1000mm | 1000mm | |
| Patch Paper Thickness | 100-130gsm | 100-130gsm | 100-130gsm |
Fully Automatic Twisted Rope Handle Square Bottom Paper Bag Machine combines precision engineering and innovative features to streamline the bag-making process. With this machine, you can effortlessly produce square bottom paper bags with sturdy twisted rope handles, meeting the growing demand for eco-friendly and stylish packaging solutions.
TECHNICAL DATASHEET
| Bag width | 220-460mm |
| Paper Thickness | 60-150GSM |
| Max. Bag bottom width | 100-200mm |
| Tube length | 260-430mm |
| Rolled paper width | 625-1350mm |
| Rolled paper diameter | 1300mm |
| Inner diameter of paper | 76mm |
| Total power | 15KW (3Phase) |
| Air pressure | 690KPA |
| Net weight | 7500KG |
| Max. speed | 30-150pcs/min |
| Dimension approx. | 15*8*2.6m |
| Handle paster length | 190mm |
| Handle paster width | 50mm |
| Paper rope spacing | 95mm |
| Handle paper rope diameter | 3-5mm |
| Handle poster paper roll width | 100mm |
| Handle paper roll width | 1000mm |
| Handle paster gram per square meter | 80-135g/m2 |
